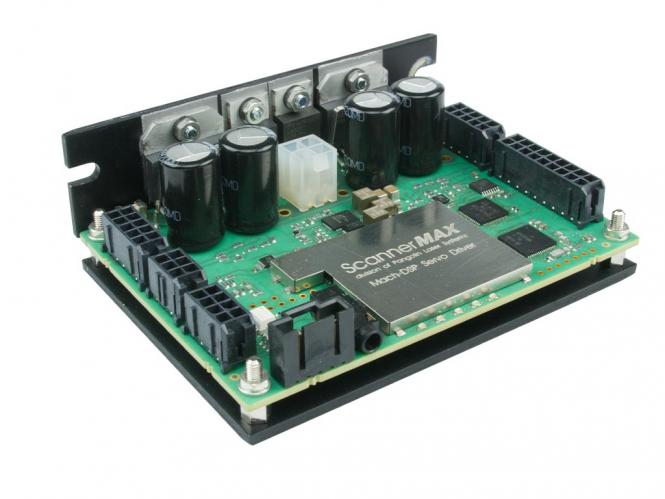

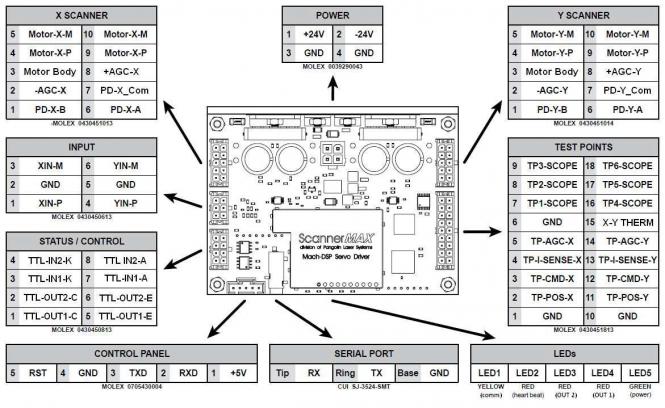

| Power Supply Voltage (standard configuration): |
+/-24 Volts DC |
| Power Supply Range (upon special order): |
+/-12 to +/-30 Volts DC |
| Power Supply Quiescent Current: |
+200, -230mA with 24V power supply |
| Motor Drive RMS Current: |
5 Amperes, RMS, Per Axis |
| Motor Drive Peak Current: |
10 Amperes, Maximum, Per Axis |
| Analog Command Input Signal: |
up to +/-10 Volts, user-configurable scale |
| Analog Command Input Impedance: |
20 K? differential |
| XY2-100 compatible Digital Command Input Signal: |
16-bits or 18-bits 3.3V direct-connect or RS-422 Signaling |
| Digitizing Resolution: |
16-bits for all analog inputs and outputs |
| Enhanced Resolution (for low dither applications): |
17/18-bits for Position / Command |
| Sample rate for analog inputs and outputs: |
200 ksps Dual-Axis / 300 ksps Single-Axis |
| Position Test Point Output: |
+/-10 Volts, scanner-dependent scale |
| Current Test Point Output: |
+/- 10 Volts, full scale (1 volt per amp) |
| AGC Test Point Output: |
0 to -15 Volts, full scale |
| Six separate user-configurable Analog Outputs: |
+/-5 Volts, User-configurable scale |
| Two separate programmable Digital Inputs: |
TTL-level Optically isolated |
| Two separate programmable Digital Outputs: |
TTL-level Optically isolated |
| Bi-directional Serial / USB and Control Panel Ports: |
3.3V TTL-level Asynchronous and Synchronous |
| Size (W x L x H): |
2.95 x 3.94 x 1.3 inches |
| Size (W x L x H): |
75 x 100 x 33 millimeters |
| Mass: |
170 Grams |
